Fine steel

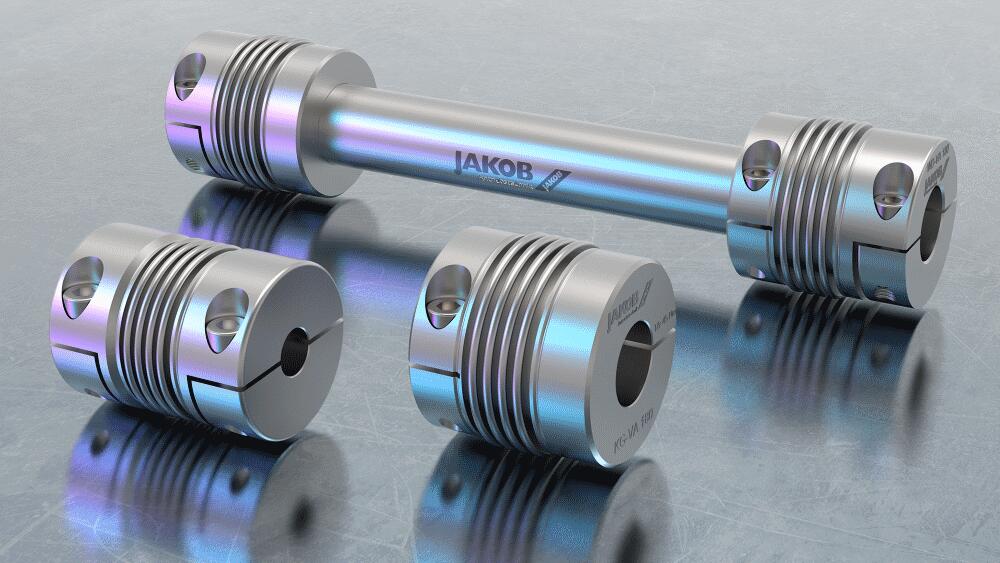

JAKOB Antriebstechnik offers two stainless steel couplings as standard series. The metal bellows coupling KG or KGH-VA as well as the spacer coupling series WD-VA, both of which are manufactured in the extremely easy-to-install half-shell hub design. Assembly and disassembly of the couplings are no longer a problem, even in confined spaces.

The fixed halves of the hub are placed on the shaft and screwed to the loose half-shell pieces. In the case of fixed shaft journals in particular, servicing may mean that the drive and / or output unit must be disassembled, which is therefore not necessary. Thanks to the stainless steel construction, they are also ideal for use in the food sector.

The KGH-VA series is wear and maintenance-free, can be used up to 350 ° C, covers shaft diameters from 7–85mm, torque ranges from 10 to 1200Nm and is available in variable lengths with 2- or 4-shaft bellows.

The WD-VA spacer coupling is available in variable lengths up to 3m and offers torque transmission without play. It can also be used at temperatures of up to 350 ° C and includes shaft diameters from 7 - 85mm with torque ranges from 10 - 1600Nm.

Source:wire DUS
