New laser diode module for the area of machine vision

IMM Photonics presents the new laser diode module series ilumVISION

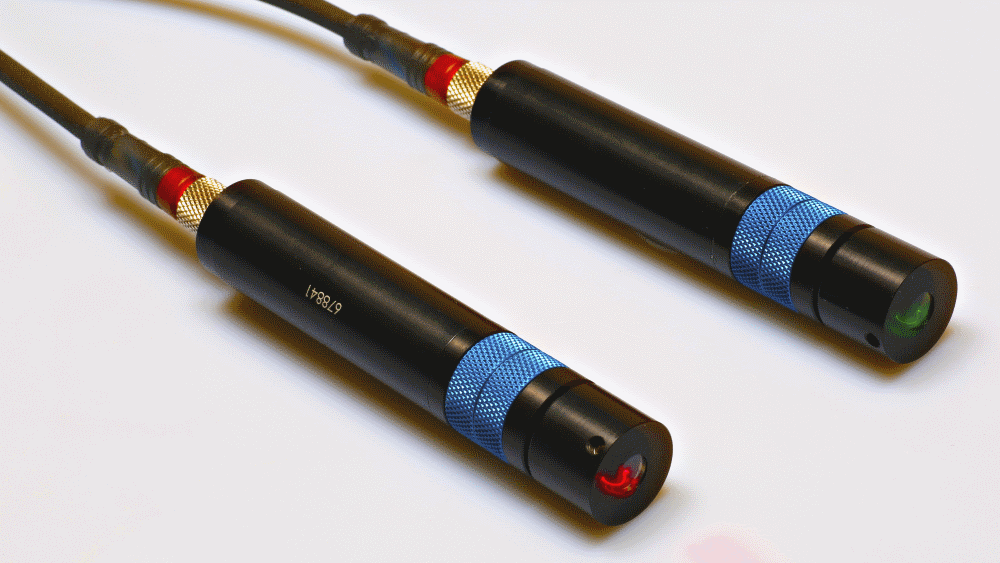

The new laser diode module with homogeneous line can be applied, in particular, wherever the highest possible level of even illumination is called for © IMM Photonics GmbH

In addition to cameras, the high-growth market of machine vision also requires ever more complex forms of illumination. IMM Photonics presents the new laser diode module series ilumVISION as a solution for demanding illumination needs.

The new laser diode module with homogeneous line can be applied, in particular, wherever the highest possible level of even illumination is called for. Available with the options "thin line" or "high focus depth", ilumVISION is ideal for the resolution of especially small structures or large working areas.

An innovative driver design allows for a high modulation frequency of up to 1 MHz with short rise and fall times. Particularly worthy of mention are the switch-on and switch-off delays which remain constant over the entire modulation area.

The standard versions of the modules have a focal range of between 300 mm and 1000mm. At 520 nm, an output capacity of up to 50 mW is offered, and 130 mW at 660 nm. The wide range input allows for operations between 4.5 V and 30 V. Aperture angles between 15° and 90° are available.

Source: wire 2020
